Station Pictures

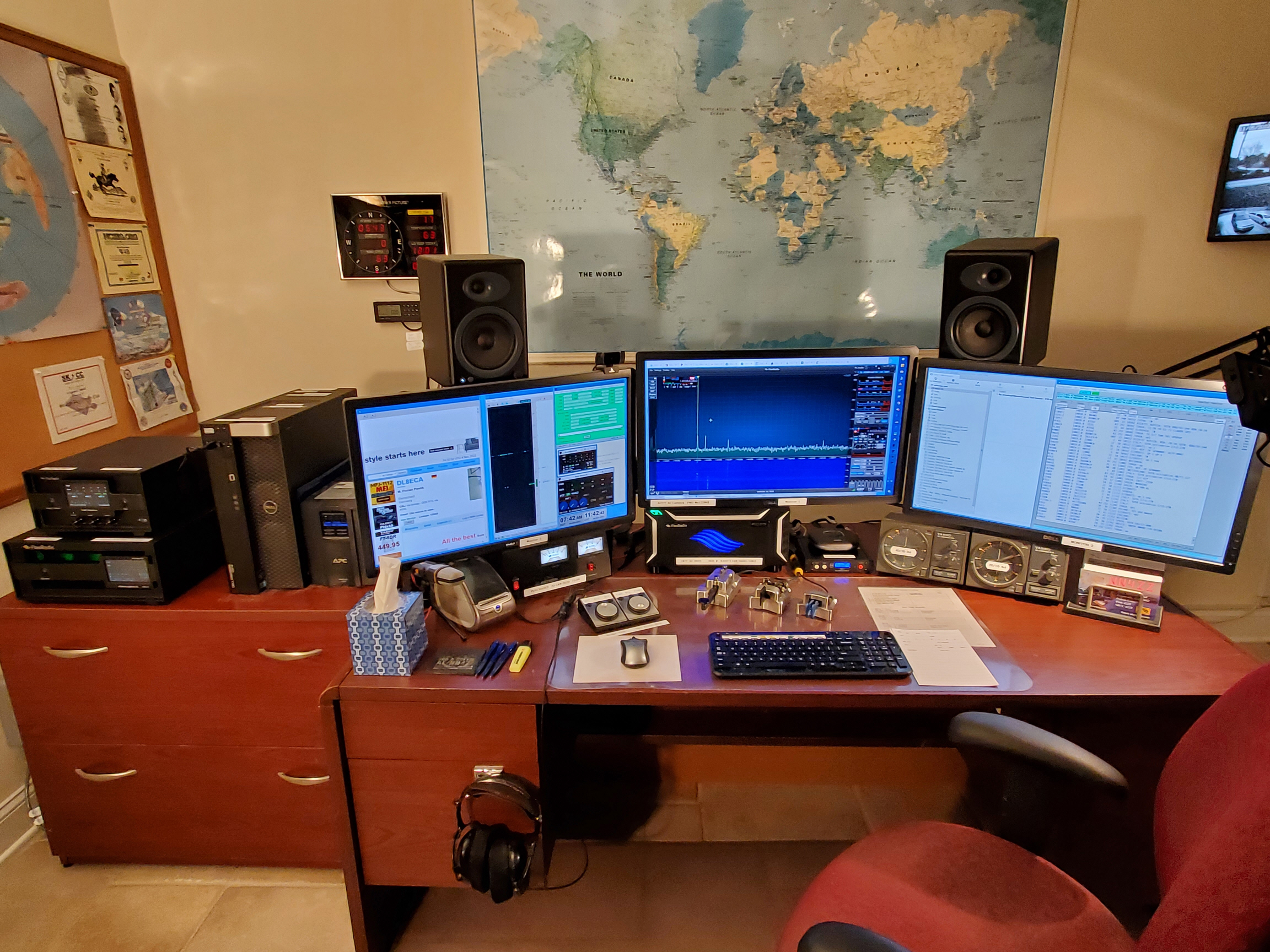

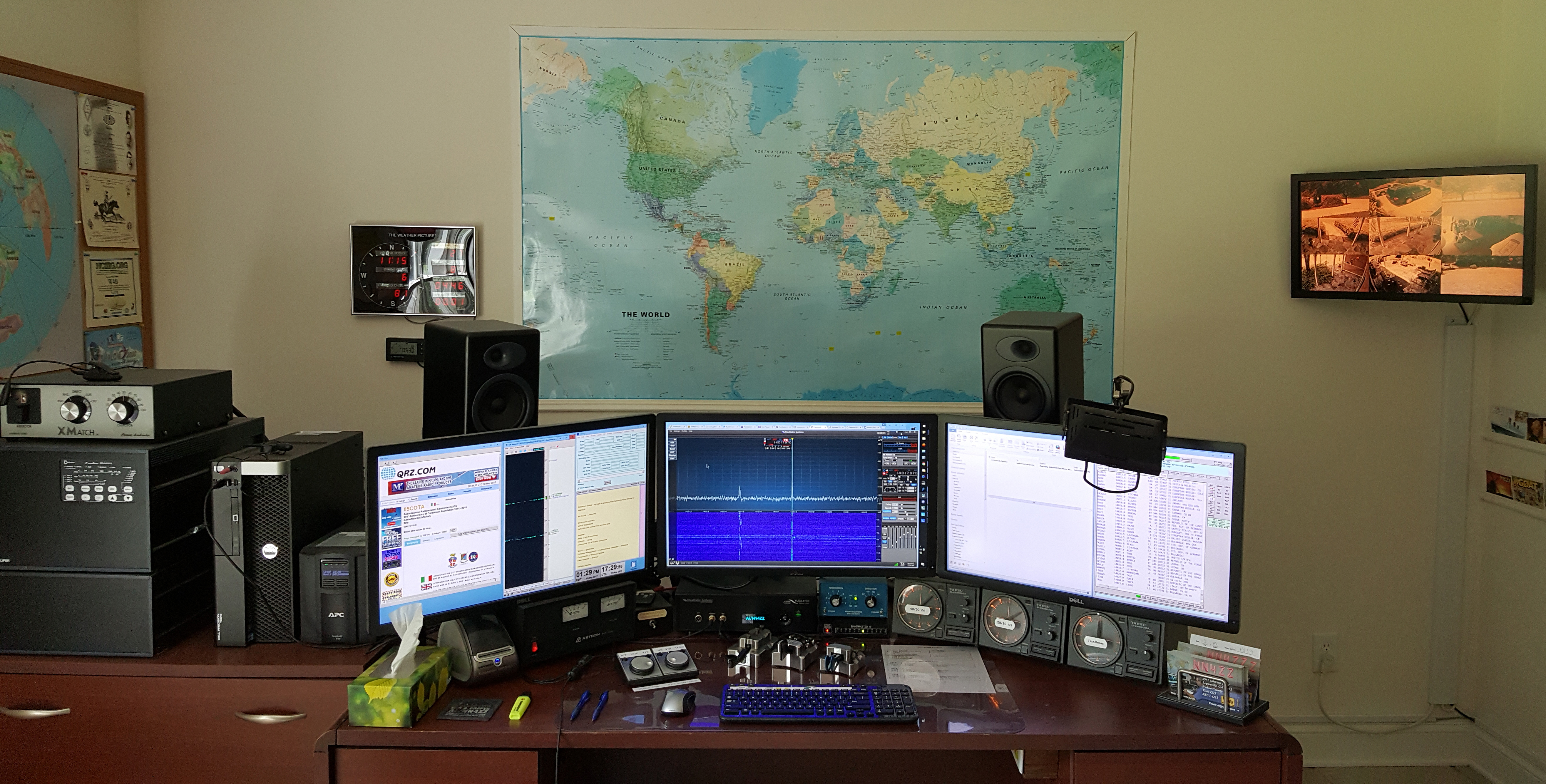

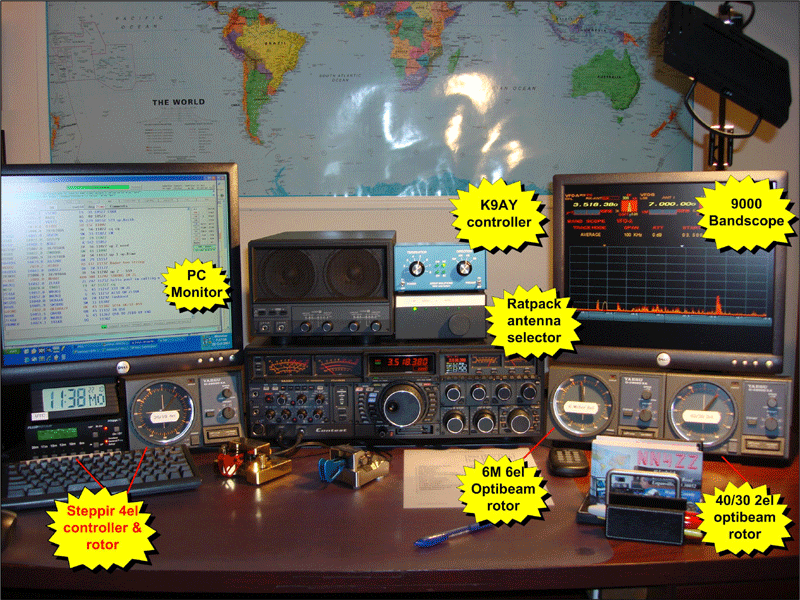

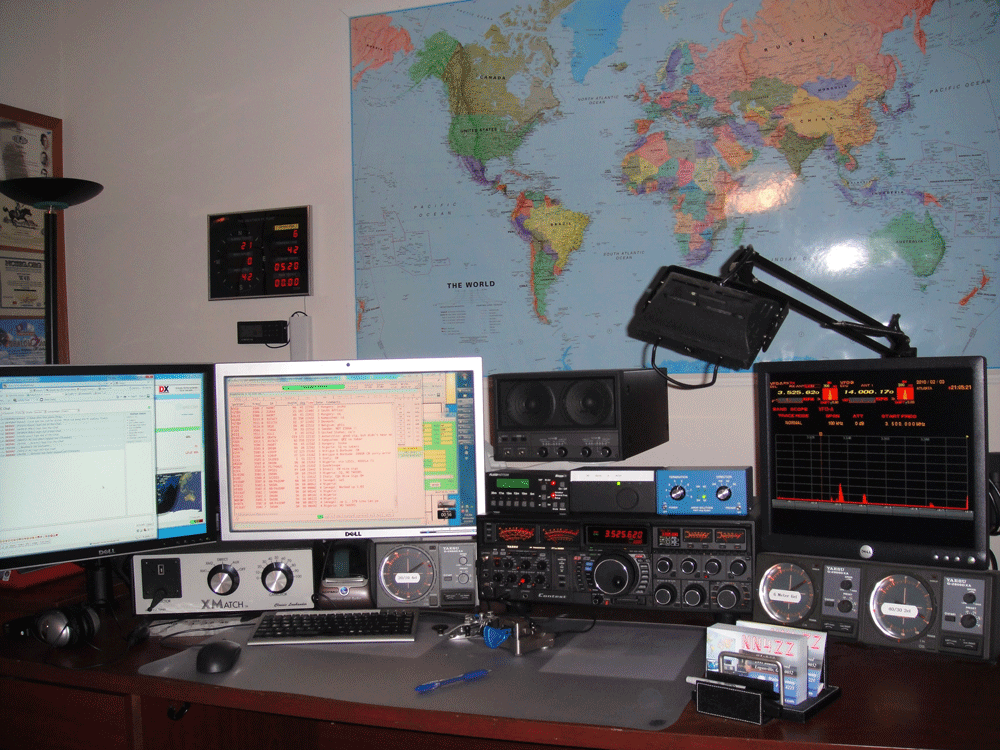

Operating Position From Left to Right
- 2 PC monitors
- Xmatch Tuner
- Rotator for 4el Steppir

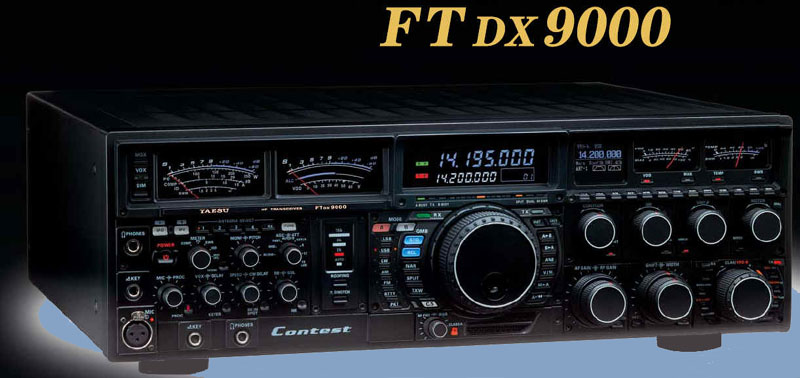

- Yaesu FTDX9000 with SP9000 speaker
- Begali Sculpture & McElroy straight key
- SteppIR controller on top of rig
- Rat Pack antenna selector
 - K9AY loop controller
- Bandscope for FTDX9000
- Rotator for 6el 6M antenna
- Rotator for 2el 40/30M  Yagi

Prometheus Solid State Amplifier not shown, click for more info



ICE 348 for steppir antenna and rotator control lines





Xmatch Tuner







Ratpack coax switch.


Located outside the shack.  Only 1 coax line coming in.





K2

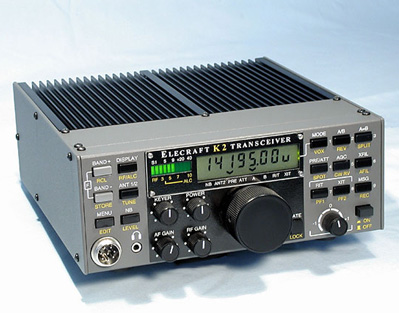

Elecraft K2


Under construction


Operating from Karen's cabin in North Carolina

PEP WOW!

Click to read about my Field Testing experience with the Program



   Prometheus Solid State Amplifier --- Click for more info



   Begali Sculpture - Stainless   (with my custom finger pieces from signature model))

     T.R.McELROY STREAM KEY used by my father W4ZKW

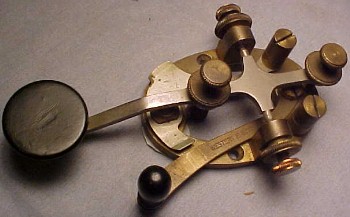

  Western Electric AT & T used by my father W4ZKW

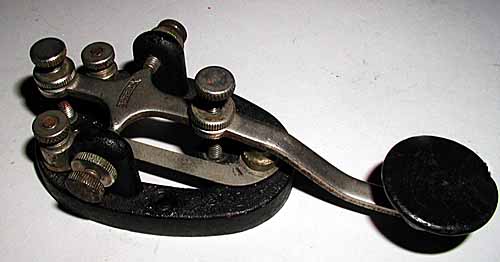

 Speed-X from my Novice days in the 60s

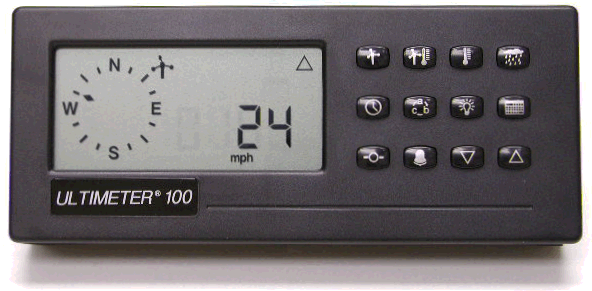

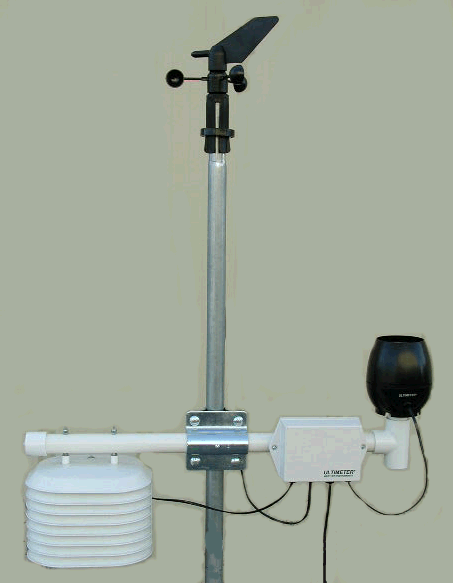

   Weather station -peet 100 - weather picture display
